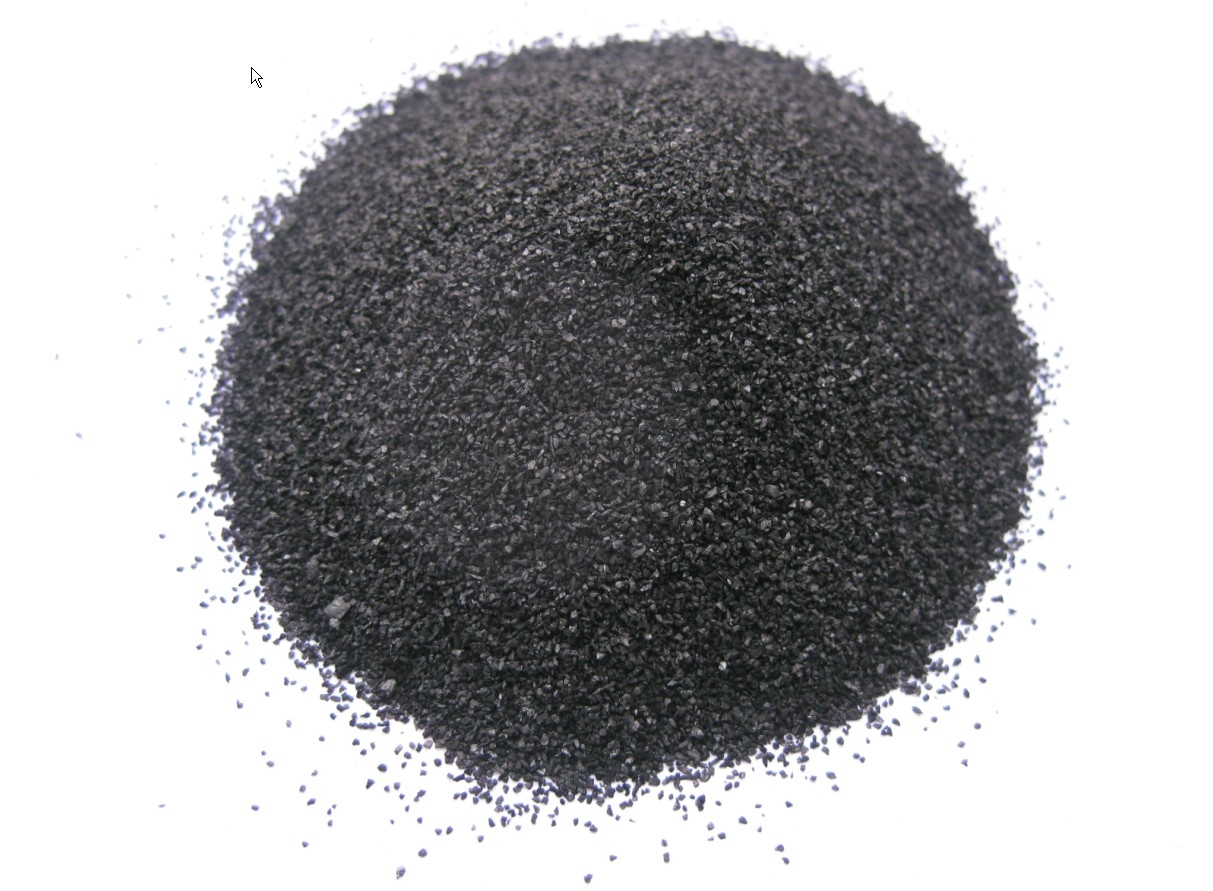

1. Coal activated carbon for water treatment with ASTM standard, Granular, (FC series)
Coal activated carbon, granular(FC series) are made from well-chosen coal using special technology.
Coal activated carbon(FC series), In favor of adsorption of organic solutes, free chlorine and harmful gases in air. So it's the best choice for the advanced of municipal drinking water, water dechlorination, decolorization and deodorization.
Coal activated carbon(FC series), it plays a non-fungible important role in preparation of highly pure water and artificially mineralized water and increasingly particular role in purification of boiler water and wastewater.
Coal activated carbon( FC series) meet ASTM standard.
The packing: 25kgs, 500 kgs, 1000 kgs woven bag(other package are available)
Coal activated carbon, granular( FC series) specs.:
|
Type |
Particle size
mm |
Iodine number
Mg/g, min |
Hardness
min |
Moisture
max |
Ash content
max |
Bulk density
g/ml |
|
FC 4*8 |
5.5-2.5 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 6*12 |
3.5-1.6 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 6*16 |
3.5-1.25 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 8*16 |
2.5-1.25 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 8*20 |
2.5-0.9 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 8*30 |
2.5-0.5 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 12*30 |
1.6-0.5 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 12*40 |
1.6-1.1 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
|
FC 20*40 |
0.9-1.1 |
500/600/700/800/850/900/
950/1000/1020/1050/1100 |
80%-95% |
5% |
9%-18% |
0.40-0.58 |
2. Coal activated carbon for odor removal with ASTM standard, Pelletized(FCP series)
Coal activated carbon, pelletized(FCP series), other name Cylindrical activated carbon are prepared from suitable coal feedstock by steam activation.
Coal activated carbon(FCP series), have features such as high mechanical strength, clear and neat shape, uniform particle size and great specific surface area.
Coal activated carbon(FCP series) with various properties can be obtained on the base of selection of suitable coal feedstock, control over carbonization and catalytic activation.
Coal activated carbon pelletized , FCP series meet ASTM standard
Coal activated carbon package:25, 500,1000 kgs woven bag ，Kraft paper bag or jumbo bag
Coal activated carbon(pelletized, FCP series) specs.:
|
Type |
Particle
Diameter
mm |
Iodine value
Mg/g min |
CTC,%, min |
Bulk density
g/ml |
Hardness
min |
Moisture
max |
Ash
max |
|
FCP
1.5 |
1.5 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP2 |
2.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP3 |
3.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP4 |
4.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP
5 |
5.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP
6 |
6.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP
7 |
7.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP
8 |
8.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
|
FCP
9 |
9.0 |
500/600/700/800/850/900/950/
1000/1050/1080/1100/1150 |
30%/40%/50%/60%/70%/80%/90%/100%/110%/120% |
0.35-
0.65 |
85%-
99% |
5% |
6%-
15% |
3. Coal activated carbon for sewage water with ASTM standard, Powder(FC100 series)
Coal activated carbon, powder (FC100 series) has extremely fast adsorption velocity and flucculation effect and aid-filtering effect.
Coal activated carbon(FC100 series) , It has win high praise from water supply works and sewage treatment plants due to its low capital investment and operation cost. Its find wide application in food processing, pharmaceutical production, decolorization, crystallization, filtration and refinement
Coal activated carbon, powder(FC100 series) meet ASTM standard
Coal activated carbon package:25, 500 kgs woven bag or jumbo bag
Coal activated carbon (FC100 series) specs.:
|
Type |
Size
|
Iodine value
Mg/g, min |
Methylene blue
Mg/g min |
Moisture
max |
Ash content
max |
|
FC100 |
100 mesh
149 um |
500/600/700/800/900/
950/1000/1050 |
90-210 |
8% |
12%-20% |
|
FC200 |
200 mesh
74 um |
500/600/700/800/900/
950/1000/1050 |
90-210 |
8% |
12%-20% |
|
FC325 |
325 mesh
44 um |
500/600/700/800/900/
950/1000/1050 |
90-210 |
8% |
12%-20% |
4. Coal activated carbon for solvent recovery with ASTM standard, pelletized(FCR series)
Coal activated carbon, pelletized(FCR series), using in solvent recovery, Widely used in production of film and foil, printing and dyeing, rubber industry, synthetic fiber, oil refining, petrochemistry industry etc.
Coal activated carbon, pelletized(FCR series), has strong property of separation and recovery of mercury, fluorocarbon, organic, dissolvent, and vapor, ether, ketone, alcohol, THF, dichlorohutane, chloroform, trichlene, carbon, disulfide, carbon, benzol, touene, formacyl gasoline oil etc
Coal activated carbon, pelletized(FCR series) meet ASTM standard
Coal activated carbon particle size:2mm, 3mm, 4mm, 5mm, 6mm
Hardness:95% min Benzene adsorption:36%/41%/45% min
CCL4:80%/90%/100% min Moisture:5% max
Bulk density:0.37-0.47 g/ml Ash:12%-14% max
Ignition point:380/400/420C
Coal activated carbon for solvent recovery (FCR series) meet ASTM standard
Coal activated carbon package: 25, 500,1000 kgs woven bag or kraft paper bag, jumbo bags
5. Coal activated carbon for air purification with ASTM standard, Cylindrical(FCG series)
Coal activated carbon for air purification(FCG series), applying to purification of chemical material gas, chemical synthetic gas, pharmacy gas, carbon dioxide gas in drinking, hydrogen gas, nitrogen, hydrochloride, acetylene and purification, separation, refinement of exhaust from atom facility etc.
Coal activated carbon for air purification(FCG series) spec:
Iodine:900/950/1000/1050/1100 mg/g min Hardness:92-98% min
Bulk density:0.38-0.55 g/ml Moisture:5% max
CTC:50%/55%/60%/65%/70%/75%/80% min
Surface area:900/950/1000/1050/1100/1150 m2/g min
Particel size:1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm,9mm
Coal activated carbon for air purification(FCG series) meet ASTM standard
Coal activated carbon(FCG series) package: 25, 500,1000 kgs woven bag or kraft paper bag.
|
