Ferric oxide desulfurizer for hydrogen sulfide removal with ASTM, DS1 series
Ferric oxide desulfurizer for hydrogen sulfide removal with ASTM , Biogas desulfurizer, DS1 series
Ferric oxide desulfurizer, DS1 series uses ferric salt and ferric oxide as basic raw material, adds silica oxide, manganese
oxide, alumina hydroxide and other contents as assistant, becomes compound active oxide after chemical synthesis and

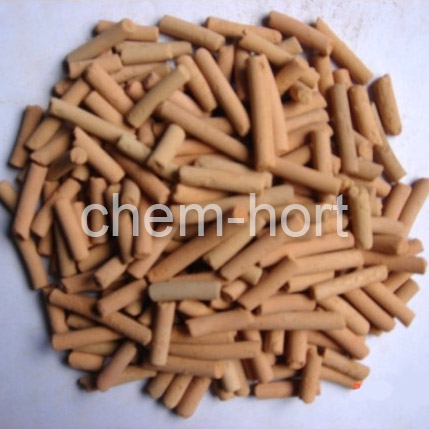

molds into stripe desulfurizer with binder.
It features in good sulfur capability, little resistance, high purity, and uses as industrial raw material in fertilizer, chemical
industry, petrifaction, coal chemical industry etc and as desulfurizer to remove hydrogen sulfide from gases, such as natural
gas, water gas, semi-water gas, hydrogen, nitrogen, coke-oven gas, carbon dioxide, carbon monoxide etc.
The desulfurizer also has removing effects on simple organic sulfur, for example, COS. It has widely applied in
second desulfurization of medium and low temperature shift conversion in medium or small sized fertilizer factories, which
can efficiently reduce the contents of H2S.
Ferric oxide desulfurizer, DS1 series spec:
|
The spec |
Value |
|
Appearance |
Yellow or brown strip |
|
Size: |
4-5 mm, or 5-6 mm |
|
Fe2O3 content |
20% , or 30% or 40% min |
|
Moisture |
5% max |
|
PH |
8-10 |
|
Bulk density |
0.6-0.8 g/ml |
|
Loss on ignition |
25% max |
|
Pressure |
40-50 n/cm2 |
Ferric oxide desulfurizer, DS1 series packing:25 kgs PP bags which inner PE film, or 700 kgs, 800 kgs jumbo bags
Ferric oxide desulfurizer, DS1 series proposed application direction:
Temperature: 10~80°C, renewable material
Pressure: normal pressure to 0.1-6.0 Mpa
H2S content of air inflow:3000 ppm
H2S content of air outflow:20 ppm
Humidity: relative humidity 20~100%, water content in bed is strictly prohibited
|
